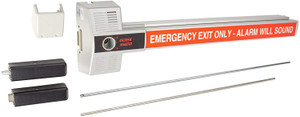

Detex V40 Series Rim Exit Device


Call (817)864-1089 to place order

(No reviews yet)
Current Stock:

Call 817-864-1089 to place order or click here to fill out pdf order form.


  • Priced to be the best value for durable and attractive loss prevention panic hardware
  • Patented mounting plate and strike locator replaces paper templates
  • Minimal door prep saves time and money
  • Angled end cap deflects damage away from device
  • Fits any door in almost any decor
  • Outside trims are easily changed or rekeyed without removing device from door
  • Covers a 161 door prep
  • Stainless steel, 3/4" deadlocking Pullman-type latch bolt
  • Non-handed
  • Field sizable
  • 1/8 turn hex key dogging
  • Heavy-duty ribbed aluminum rail extrusion
  • High impact ABS and anodized surfaces
  • Withstands over 1400 pounds of static pull force for greater security
  • Modular design accepts a variety of outside trims and functions
  • Standard and narrow stile pull trims available
  • Additional options are available including:
    • Cylinder Dogging
    • Hex Dogging (Std.)
    • Less Dogging
    • Fits 36" ~ 48" Door Width (Std.)
    • 3-Hour Fire Rated
    • Hurricane Rated
    • Surface Strike (Std.)
    • Semi Mortise Strike
    • Available with Aluminum (satin) base rail extrusion (Std.)
    • Available with Anodized Aluminum (black) base rail extrusion
    • Flexible 3' ~ 10' Conduit Kit, mounts to device end cap
    • Concealed mortise mount power transfer
    • Five-knuckle energy transfer hinge- 8 wires
