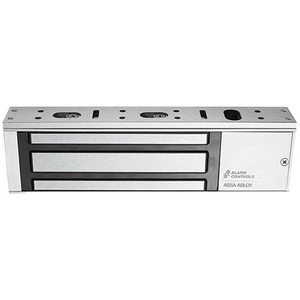

Alarm Controls 600S Single Magnetic Lock

SKU:
600S
$220.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added

Built to provide 1200 lbs of holding force, per door, for double door configurations, this easy to install magnetic lock includes LED status indicator, bond sensor and door status sensor to signal a powered and securely locked door. Ideal for interior or exterior applications.

Features

Standard Features

  • 600S Standard model
  • Built-in arc suppression
  • Instant release, no hysteresis
  • Self-drilling TEC screws
  • Non-aluminum parts are plated to resist corrosion
  • E-Z mount header bracket and template provided for easy installation, no special tools required
  • Can be used with any access control system
  • Clear anodized (US28) finish standard
  • Limited lifetime warranty



Options

  • DURO Duranodic finish (US 40) available, specify when ordering
  • Dress covers in polished chrome and brass are available. Please call for such options.

Specifications

Certifications & Listings

  • UL 294 listed
  • UL 10C fire rated
  • CAN/ULC-S104 fire door conformant
  • CAN/ULC-S527 listed
  • UL 864 listed

Holding Force: 600 lbs

Dimensions

  • Magnet size: 9-7/8" L x 1-11/16" H x 1" W
  • Armature size: 7-1/4" L x 1-1/2" H x 1/2" W

Electrical

  • 12 or 24 VDC, field selectable
  • Current draw: 505 mA at 12 VDC, 260 mA at 24 VDC
  • 600lbs bound sensor has SPDT 3A relay contacts

Operating Temperature: +14 to +131F [-10 to +55C]
