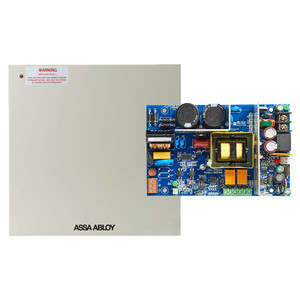

Securitron AQD1 AccuPower Series

• All combinations of AQ power supplies and distribution boards are UL listed
• Dual voltage 12 or 24 VDC field selectable continuous output
• Up to 82% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
• Tolerates brownout or overvoltage input ± 15% of nominal voltage
• Thermal shutdown protection with auto restart
• Circuit breaker protects against overcurrent and reverse battery faults
• Integrated battery charging circuit prevents overvoltage on locking devices
• Available with a single relay fire trigger or individually triggered relayed outputs
• MagnaCare^® lifetime replacement, no fault warranty

Specification Data

• Low noise design with ripple as low as 68mV p-p
• Power supply outputs are Class 2 power limited when used with 4, 8 or 16 output distribution boards
• Expandable up to 16 independently controlled power limited outputs
• Available with configurable access control input/outputs with fire trigger in either PTC or with fuse/dry contact option, fire relay only, or configurable outputs with fire relay input
• LED indicators and form "C" contacts for supervision
• Supports up to two (2) sealed gel, AGM or wet lead acid batteries
• Dimensions: 14" x 14" x 4-3/4" enclosure
• Operating Temp: -4 to +122F [-20 to +50C]
• Shipping Weight: 12.7 lbs [5.76kg]
